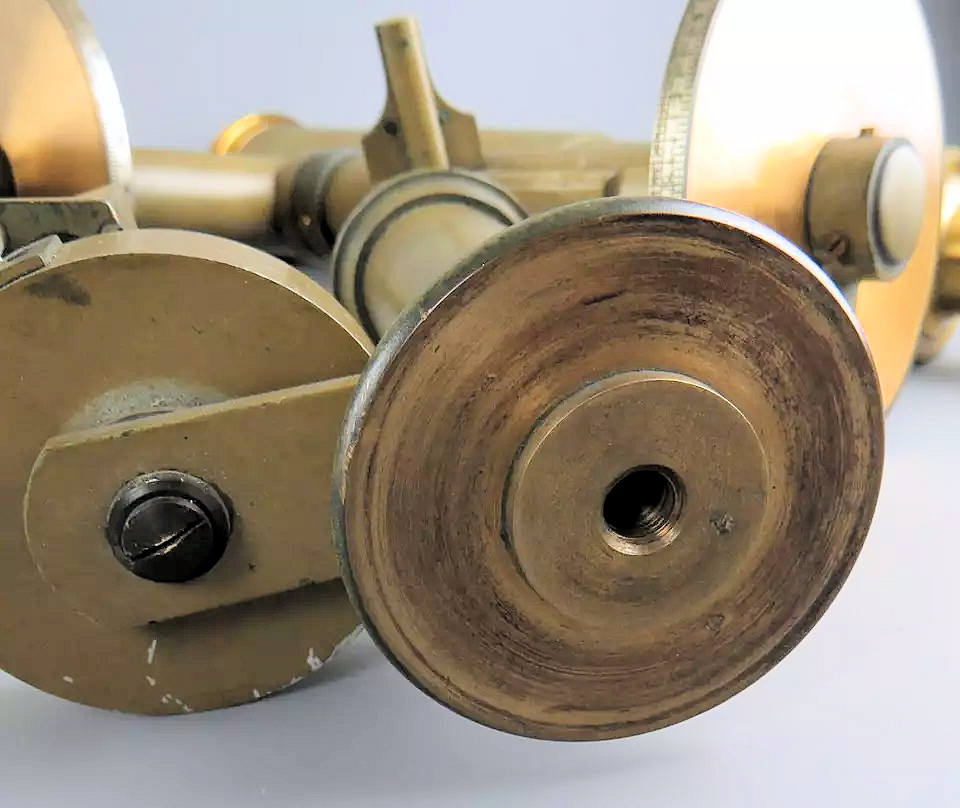

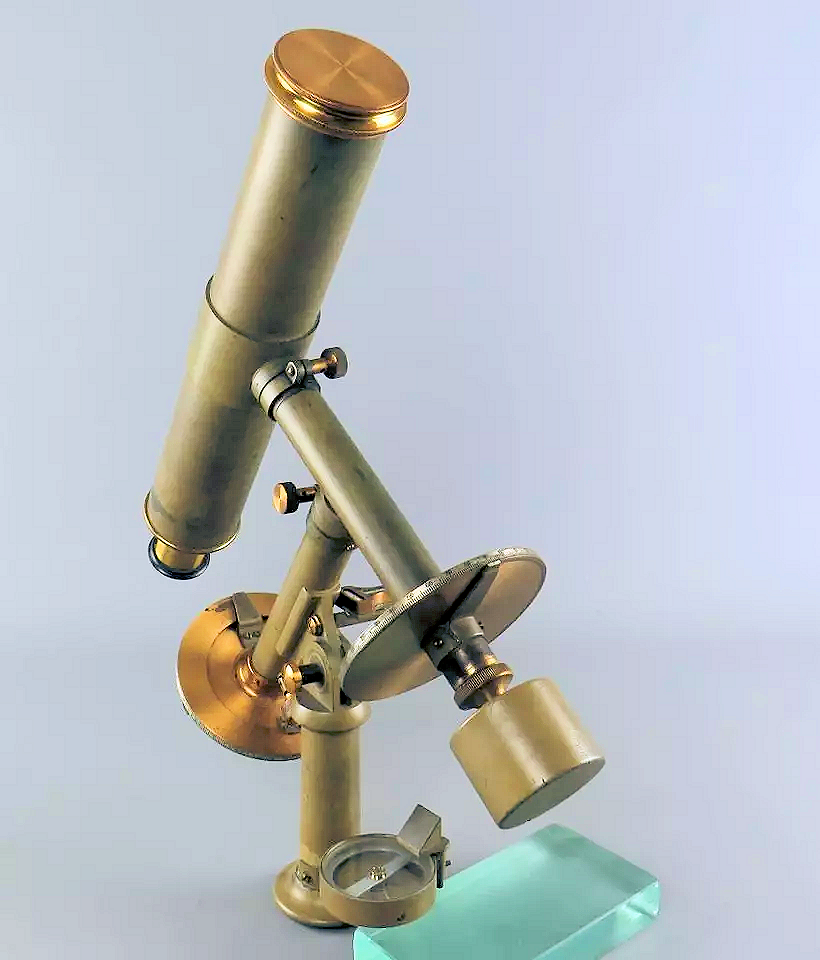

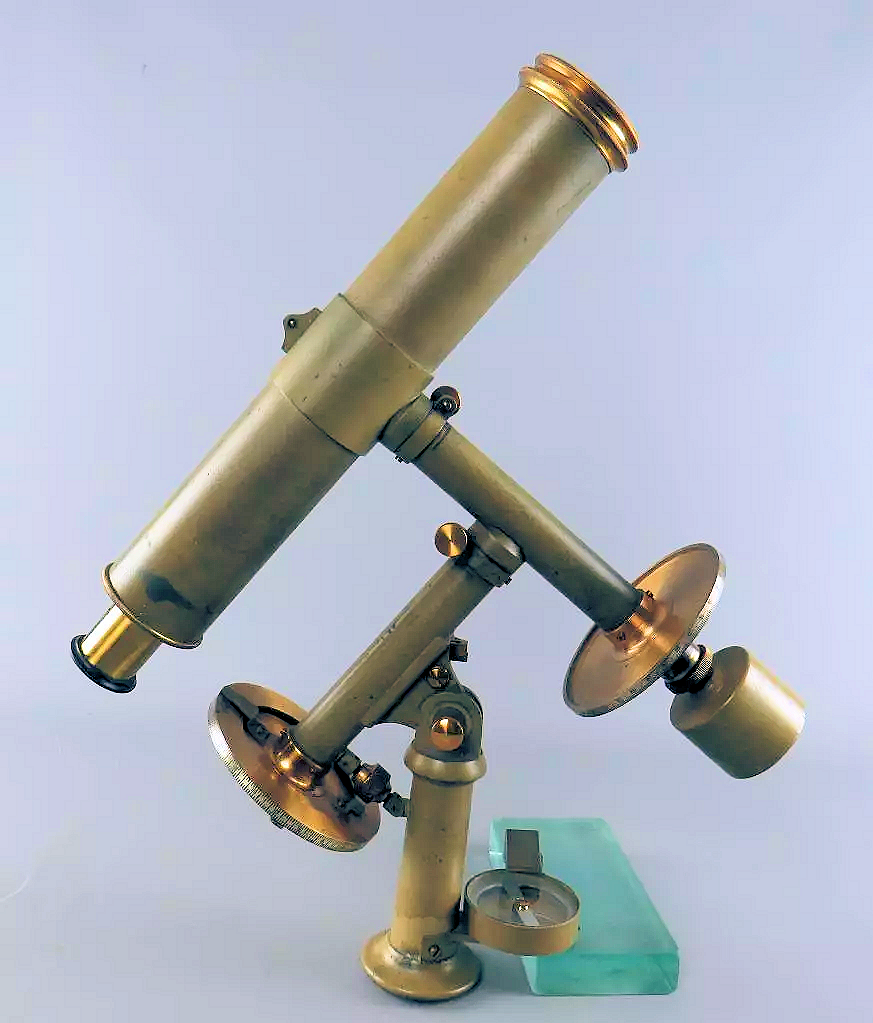

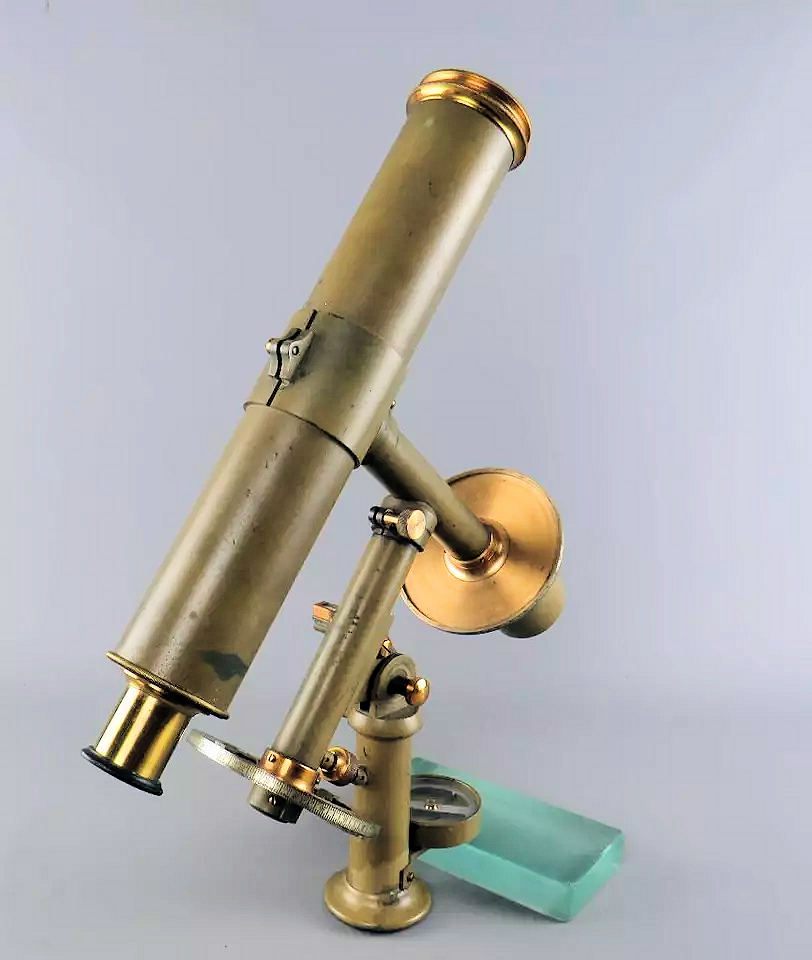

The base has a small threaded hole for mounting (no stand present), a revolving prismatic compass with transit lock and push up prism, and connects to the lower arm via a thumbsrew pivot and an adjustable ‘arrangement’ below. The lower arm has twin tiny bubble levels and is connected to a counter weighted upper arm, on which, the telescope in mounted. Both arms have locking nuts.

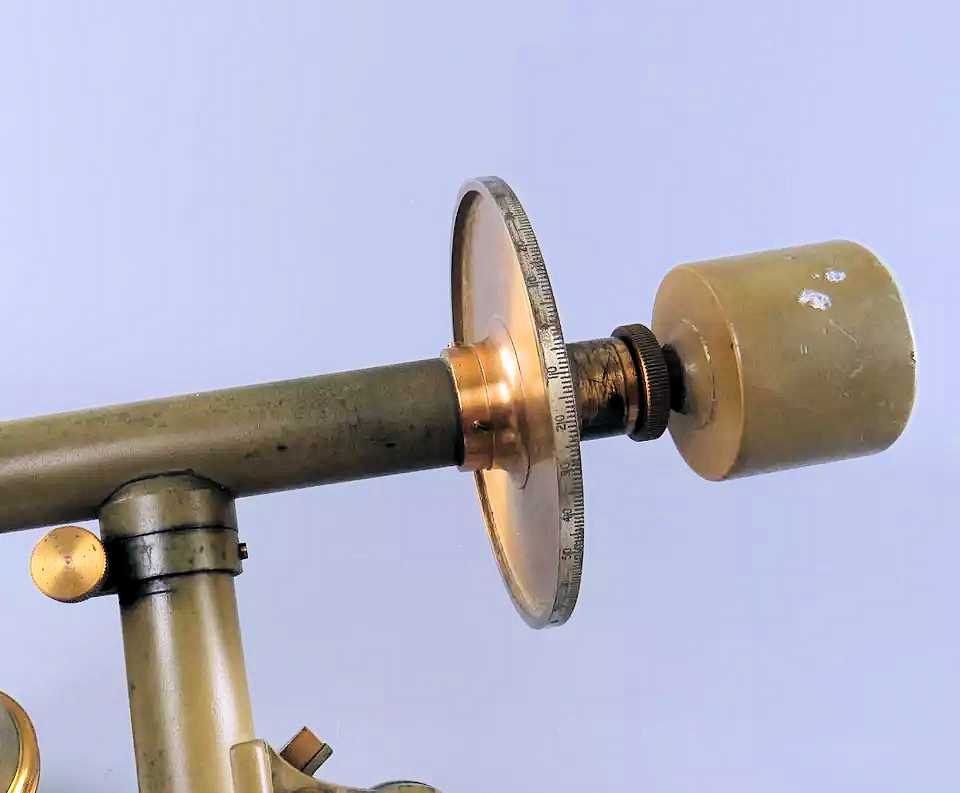

The dial on the lower arm has a revolving needle and a 1 – 24 graduated scale and operates when the upper arm and telescope are moved (in a circular, elliptical movement), the upper (counter-weighted) arm has a similar 360 degree dial split into four 90 degree sections and operates only when the actual telescope rotates.

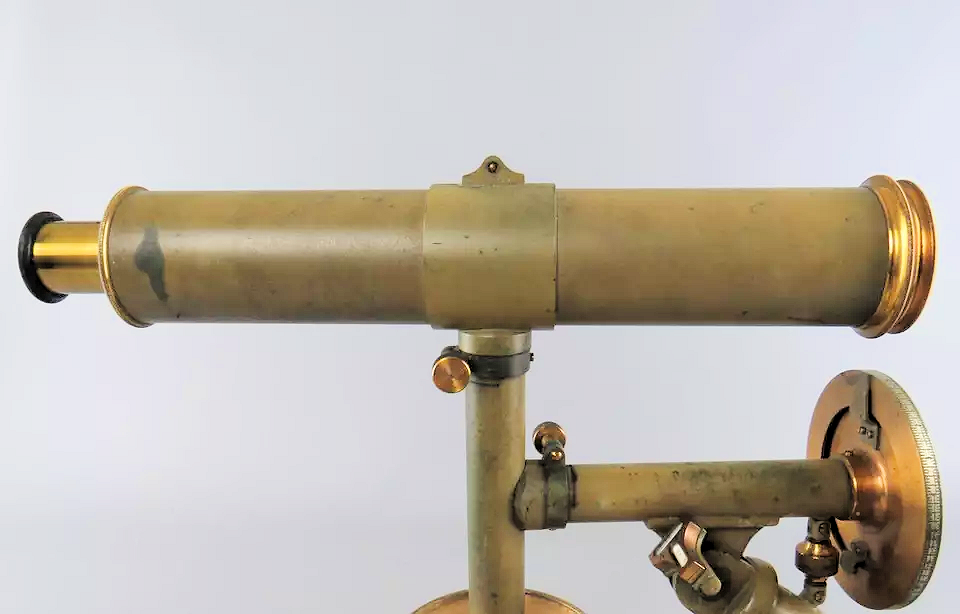

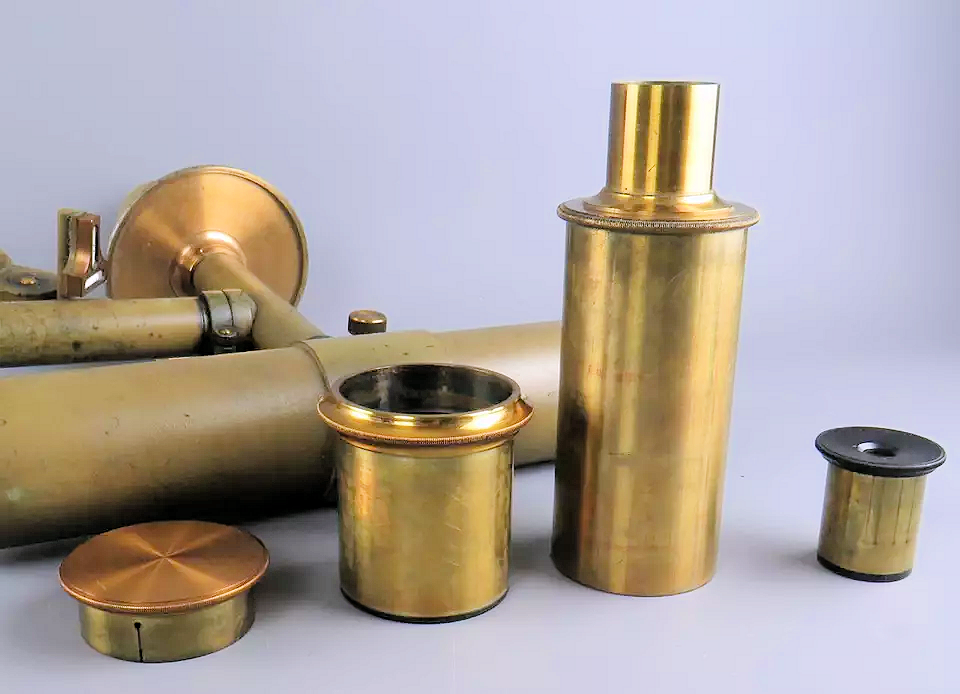

The telescope has a celestial (inverted) view and focus is push / pull focus to the draw tube. The 2″ diameter objective lens is in a brass mount with a deep 2″ hood.
