Early Spike-Stand
Stock Number: FG_22038
Sold
These are early forms of the single microscope made of bone, horn, or fruitwood. They have a single, biconvex lens mounted on the top of a stand facing a spike on a movable rod or a brass sprung pin, to which a flower or an insect could be speared for inspection (thus the term "flea glass", an English translation of the Latin name vitrum pulicarium). Focusing was achieved by moving the spike backwards or towards the lens.

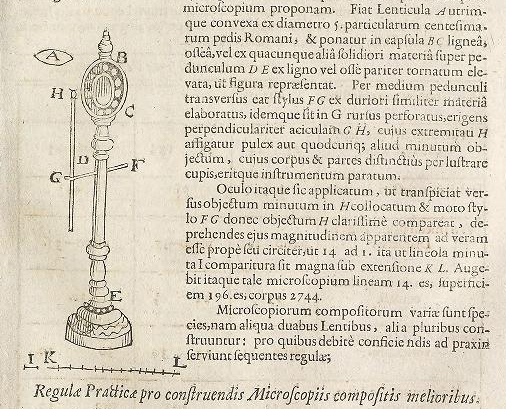

A similar microscope appears in Johannes Zahn's (1702) book (last image). The instrument seen here dates between the late 17th to the mid-18th century.
Dimensions
Height: 9 cm
Circa
1700
Country of manufacture
Germany
Description

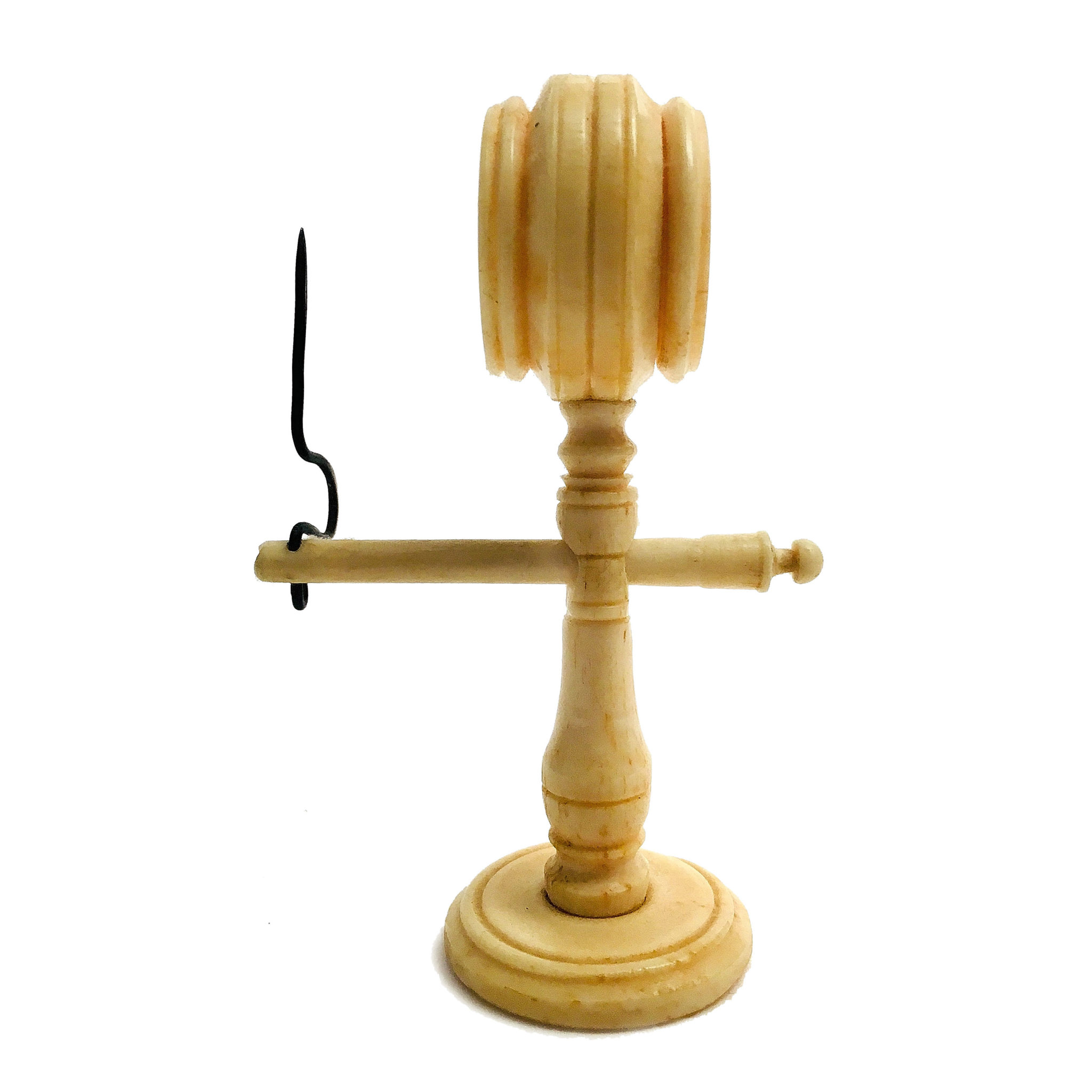

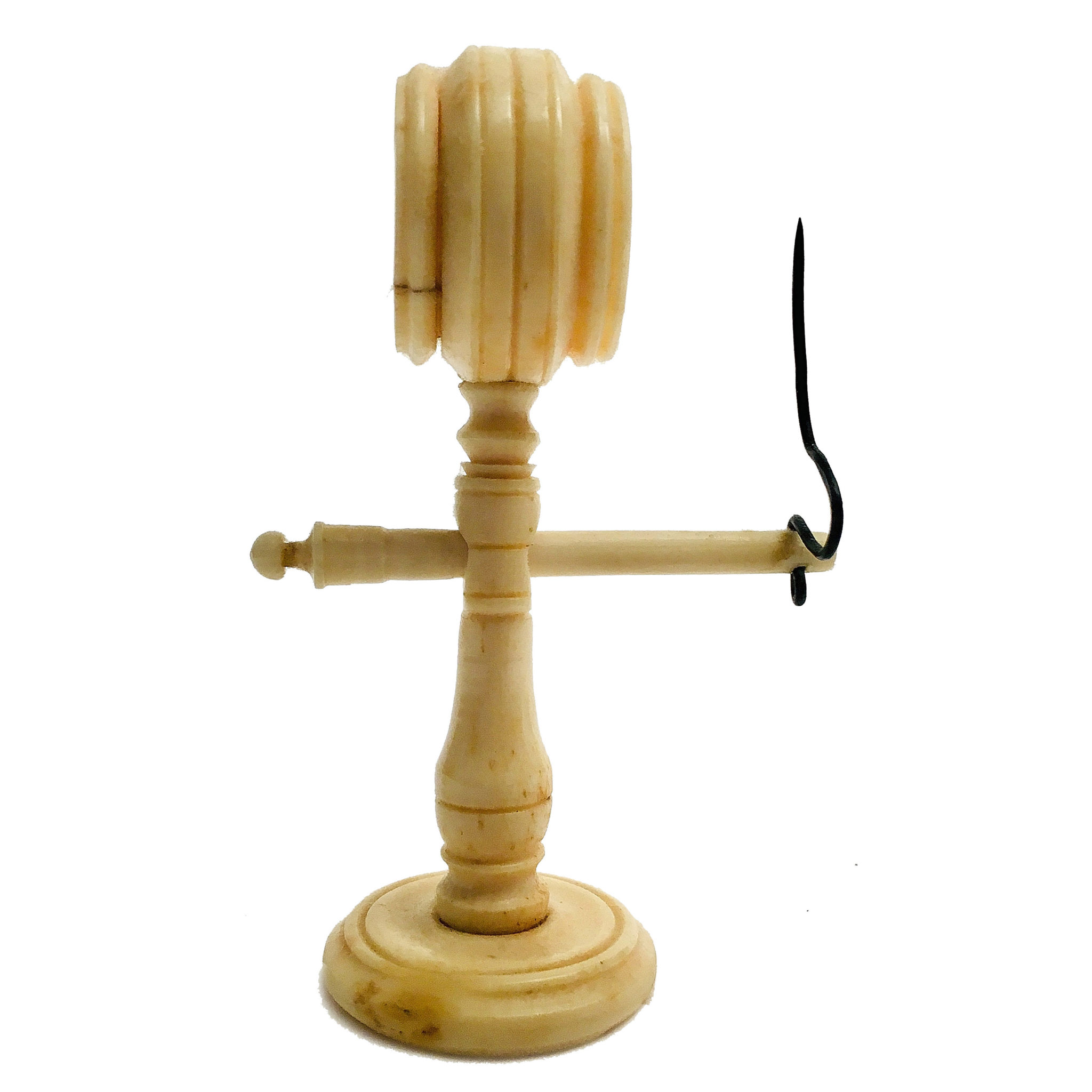

This is an early form of a spike-stand microscope made of lathe-turned bone (presumably bovine). This early and rare form of the Spike-Stand microscope is more or less similar to Zahn’s depiction, the latter was probably turned of wood.
